TeamViewer IoT Documentation


TeamViewer IoT SDK

Introduction to TeamViewer IoT SDK #

The software development kits (SDK) are collections of software development tools in a installable package.

The SDKs enable advanced users to create custom applications within the TeamViewer IoT Solution, e.g. automation of processes.

The following SDKs are available:

TeamViewer IoT C-SDK #

The TeamViewer IoT C-SDK is a development kit to facilitate integration of sensors to the IoT Agent MQTT API to allow for secure data registration and transfer to your TeamViewer IoT Cloud.

See:

Download the C-SDK #

Depending on your operating system and architecure, select the correct SDK Installation Package.

Linux

ArchitectureInstallation Package
ARM v5 hfTeamViewer IoT C SDK for ARM v5 hf
ARM v5 elTeamViewer IoT C SDK for ARM v5 el
ARM v7 hfTeamViewer IoT C SDK for ARM v7 hf
i386 (x86 32 Bit)TeamViewer IoT C SDK for i386 (x86_32 Bit)
AMD64 (x86 64 Bit)TeamViewer IoT C SDK for AMD64 (x86_64 Bit)

Windows

ArchitectureInstallation Package
Windows 8 (or newer) compatible deviceTeamViewer IoT C SDK for Microsoft Windows

Set up the C-SDK with Visual Studio #

What you will need

Make sure that you have prepared the following points:

Setup

  1. On your PC open Visual Studio.
  2. Create or open a C project you would like to use to create solutions for your edge device.
  3. Open the Solution Explorer (default: CRTL+ALT+L).
  4. Right click the project name and from the popup menu select Properties.
  5. On the left side click General > C/C++.
  6. On the right side click Additional Include Directories then select Edit from the drop-down-menu.
  1. Add the directory /include/ from the downloaded SDK to the project and click OK.
  2. On the left side click Linker > General.
  3. On the right side click Additional Library Directories then select Edit from the drop-down-menu.
  1. Add the directories which contain the library files from the downloaded SDK to the project and click OK.
  2. In the Properties dialog click OK.

TeamViewer IoT Node-SDK #

The TeamViewer IoT Node-SDK (JavaScript) is a development kit to facilitate the integration of sensors to the IoT Agent MQTT API to allow for secure data registration and transfer to your TeamViewer IoT Cloud.

See:

Set up the Node-SDK (Linux) #

What you will need

Make sure that you have prepared the following points:

Setup

  1. Access the edge device remotely (Access the Edge Device via Remote Terminal).
  2. Download the SDK on the edge device. In the terminal type in the following command and press return.
wget https://download.teamviewer-iot.com/sdks/nodejs/v1.0.3/teamviewer-iot-sdk-nodejs-v1.0.3.tar.gz
  1. Extract and install the SDK. In the terminal type in the following commands and press return.
sudo tar -zxvf teamviewer-iot-sdk-nodejs-v1.0.3.tar.gz
cd teamviewer-iot-sdk-nodejs
sudo npm install
  1. Optional: run the SDKs’ examples. In the terminal type in the following command and press return.
sudo node ./examples/create_metric.js




TeamViewer IoT Python-SDK #

The TeamViewer IoT Python-SDK is a development kit to facilitate the integration of sensors to the IoT Agent MQTT API to allow for secure data registration and transfer to your TeamViewer IoT Cloud.

See:

Set up the Python-SDK (Linux) #

What you will need

Make sure that you have prepared the following points:

Setup

  1. Access the edge device remotely (Access the Edge Device via Remote Terminal).
  2. Download the SDK files. In the terminal type in the following command and press return.
wget https://download.teamviewer-iot.com/sdks/python/v1.1.0/teamviewer_iot_python_sdk-1.1.0-py3-none-any.whl
  1. Install the SDK. In the terminal type in the following command and press return.
sudo pip3 install teamviewer_iot_python_sdk-1.1.0-py3-none-any.whl
  1. Extract the package files. In the terminal type in the following command and press return.
unzip teamviewer_iot_python_sdk-1.1.0-py3-none-any.whl -d
teamviewer_iot_python_sdk
  1. Optional: Run the SDK example. In the terminal type in the following command and press return.
cd teamviewer_iot_python_sdk
sudo python3 ./examples/create_metric.py




TeamViewer IoT Node-Red Plugin #

For the Node-Red programming environment, TeamViewer provides a plugin which can be used to interact with TeamViewer IoT Agent.

The plugin enables advanced users to create sensors/metrics and to push data to the TeamViewer IoT Cloud.

See:

Set up the TeamViewer IoT Node-Red Plugin #

What you will need

Make sure that you have prepared the following points:

Setup

  1. Access the edge device remotely (Access the Edge Device via Remote Terminal).
  2. Download TeamViewer IoT Node-Red Plugin. In the terminal type in the following commands and press return.
cd /home/$USER
wget https://download.teamviewer-iot.com/connectors/teamviewer-iot-node-red-plugin/1.0.1/teamviewer_iot_node-red_plugin-1.0.1.zip
  1. Extract the zip-file. In the terminal type in the following command and press return.
unzip /home/$USER/teamviewer_iot_node-red_plugin-1.0.1.zip
  1. Install the plugin. In the terminal type in the following commands and press return.
cd /home/$USER/.node-red
npm install /home/$USER/teamviewer_iot_node-red_plugin-1.0.1
  1. Start the plugin. In the terminal type in the following command and press return.
node-red-start

Restart the Node-Red Plugin

  1. Access the edge device remotely (Access the Edge Device via Remote Terminal).
  2. Restart the plugin. In the terminal type in the following command and press return.
node-red-restart




Application Development with the TeamViewer IoT Node-Red Plugin #

What you will need

Make sure that you have prepared the following points:

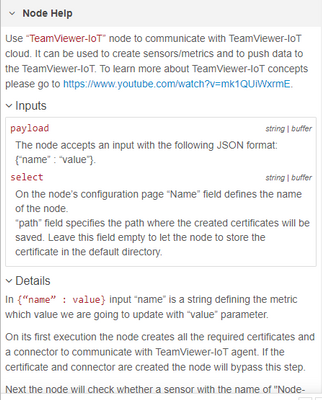

  1. Open the node-red web interface from your web browser and in the left panel you will find the teamviewer iot node. Configure it as described in the help window.
  1. Connect a data source to the node and run the program. Use {"name":value} JSON format to push numeric data with not less than 1 second interval.
  2. To log in to the IoT Management Console, open https://teamviewer-iot.com and use your TeamViewer account credentials.
  3. From the left menu select Dashboard. Make sure that a new sensor and metric are created with the name that specified in JSON string.
  4. Optional: Pin the metric (see Add a Widget) to the dashboard to visualize the values.
