Sharing Configuration Parameter

Last Modified 19 дек. 2025 г.

This feature was introduced with Frontline Command Center 3.0.11 and holds the following benefits:

  • Reduced configuration effort
  • Reduced issues with misconfiguration

If you want your components to behave in the same way, you need to enable the Use (component-)shared setting. For your components to behave differently, enable the Use (component-)local setting.

Example

The following example is based on the Questionnaire component.

Defining properties as shared

To define a particular property shared, the property must have all of the following 3 attributes: id, shared, and inherit.

Questionnaire Tree

Note: The shared property ID must be unique. If the same ID is used multiple times, the property defined later on will not overwrite the previous one.

Result

After applying the above described changes in the config.json file, additional options become available:

Shared Prop Panel Local

Additionally, the properties become available in the Shared Properties tab:

Shared Prop Panel Central

Control

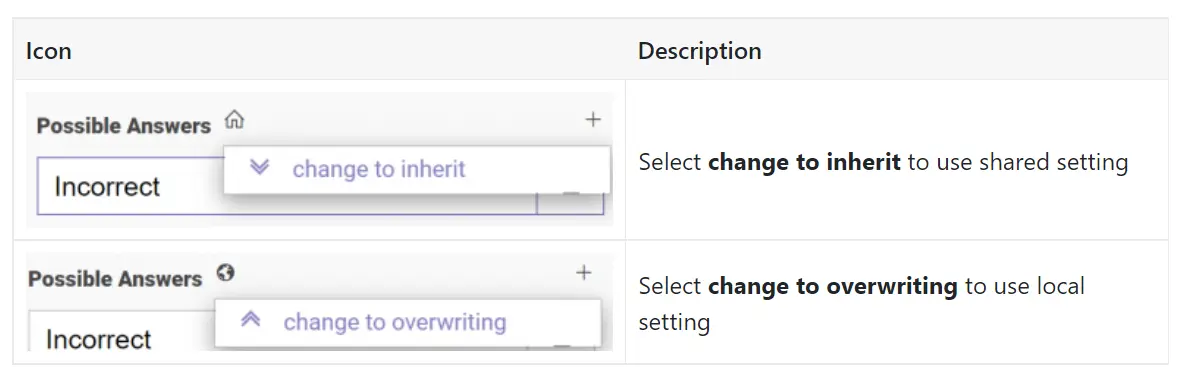

Click on the Globe/Home button to change which settings apply:


Docs

    "shared":true,
    "inherit":true,
    "id":"unique_shared_variable_id",
  • shared - Defines the property as shared.
  • inherit - Defines if global setting should be applied.
  • id - Defines a unique ID used to identify and reference the shared property.

The unique property ID can be used directly inside your workflow, without naming the whole property path:

<ui_element name="YOUR_UI_ELEMENT">
    <param name="visibility"><![CDATA[§{#if shared_show_icon}§Visible§{else}§Gone§{/if}§]]></param>
</ui_element>
<!--vs.-->
<ui_element name="YOUR_UI_ELEMENT">
    <param name="visibility"><![CDATA[§{#if Configuration.layout.value.show_icon.value}§Visible§{else}§Gone§{/if}§]]></param>
</ui_element>
